The Canon EOS R1 marks a groundbreaking evolution by delivering the professional-grade features of the DSLR 1DX series to Canon's mirrorless RF-mount lineup. Built with professionals in mind, the R1 excels in autofocus speed and precision, maintaining exceptional image quality even in fast-paced action or challenging low-light conditions. Boasting Canon's brightest and highest-resolution electronic viewfinder (EVF) to date, along with revolutionary autofocus enhancements, the EOS R1 stands as a testament to innovation and is undoubtedly worth the anticipation.
Technical Specifications
 Dimensions (W x H x D)
370mm x 236mm x 166mm
Weight in air
3.94 kg
Buoyancy in water
Positive 0.45kg
Depth Rating
100m

Resources

Instruction Manual PDF Download

What's In The Box

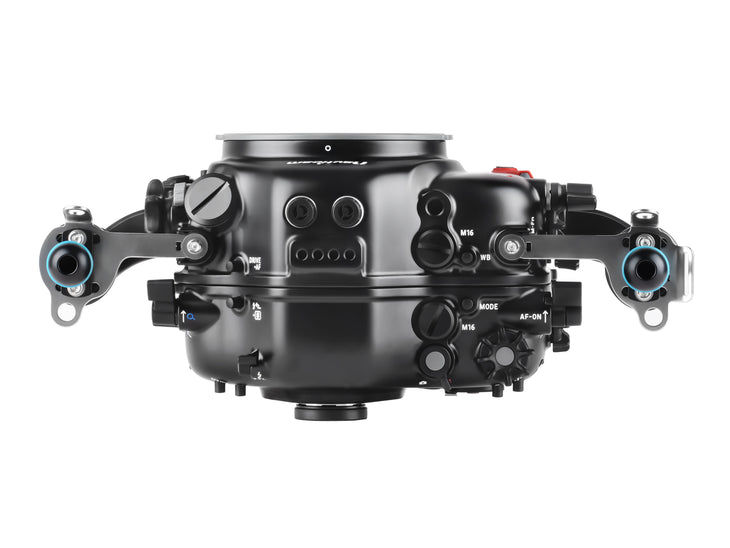

NA- R1 Housing
Housing Cap
2x Optical bulkhead caps
2x Handles with mounting balls and 2x handle brackets
Panasonic CR-2450 Battery (pre-installed for moisture alarm)
Spare main O-ring, O-ring remover and lubricant
Set of Allen Keys
Padded housing bag and shoulder strap

Optional Accessories
25221 M10 Strobe Mounting Ball for housing
25224 M10 Strobe Mounting Ball for housing (with hole for using lanyard)
25228 M5 Strobe Mounting Ball for housing
17959 Housing Mounting Ball with 1/4'' screws
25625 M16 Vacuum Valve II (Pushbutton Release)
25413 27cm Lanyard with two snaphooks
28130 Hand Strap for 28113
28123 Pair of Handles - size S (10mm closer to housing)
32212 Nauticam Full Frame Straight Viewfinder 40 / 0.8:1
32214 Nauticam Full Frame Angle Viewfinder 40 / 0.8:1
87213 Reverse Angled Viewfinder for EMWL (40 / 0.8:1)
87214 Reverese Straight Viewfinder for EMWL (40 / ).8:1)
26325 USB-C Bulkhead with USB-C Connector (Can be mounted directly on M16 port)
26326 M24-M16 Adaptor for use with 26325 (only required when used with the M24 port)
16704 Cooling Fan Set for NA-R5II Housing

HDMI Output
1) Required accessories for HDMI 2.0 Cable System
25086 M24 Adaptor for HDMI 2.0 cable (incl. tightening tool)
25099 M24A2R200-M28A1R170 HDMI 2.0 Cable (for NA-A1 to use with Ninja V housing)

Compatible Monitor Options
17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5'' 4kp60 4:2:2 10-bit recorder/monitor/player (excl. HDMI 2.0 cable)
17922S Nauticam Atomos Ninja V-S Housing for Atomos Ninja V 5'' 4kp60 4:2:2 10-bit recorder/monitor/player (excl. HDMI 2.0 cable) with Atomos AtomX SDI Module

2) Required accessories for HDMI 1.4 Cable System (can be installed on either the M24 or the M16 accessory port)
25033 Standard HDMI Bulkhead with M16 thread (included in 17923 monitor housing)
25100 HDMI (D-A) Cable in 200mm length for NA-A1 (for connection from HDMI bulkhead to camera)
26326 M24-M16 Adaptor for use with 26325 (only required when use with M24 port)

Compatible Monitor Options
17923 NA-Shinobi-H Housing for Atomos Shinobi 5.2'' Ak HDMI Monitor with HDMI 1.4 input
17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5'' 4kp60 4:2:2 10-bit recorder/monitor/player (excl. HDMI 2.0 cable)
25082 HDMI1.4 Cable for Ninja V Housing in 0.75m Length (for connection from Ninja V Housing to HDMI bulkhead) Required for use with 17922

Required Monitor Mounting Options
17951 Nauticam Atomos Shogun Housing Mounting System
17957 Nauticam Atomos Shogun Housing Mounting adaptor for NA-S1R/S1H/BMPCC/E2F (after SN A439736)
17954 Universal Tripod Plate for Nauticam Housings
17960 Universal Quadra-Pod Plate for Nauticam Housings
